NW Conversions 24 Gallon Ford Transit Wheel Well Water Tank - Right (TR-R-24)

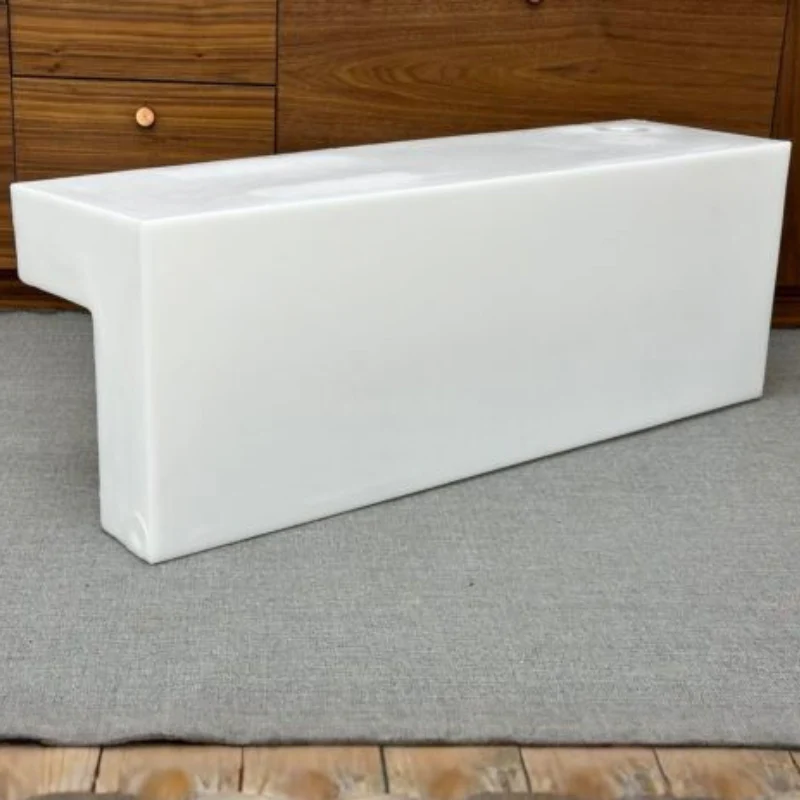

- 24 Gallon Wheel Well Water Tank (TR-R-24)
- Designed for the For Transit Van
- Can be placed either driver or passenger side.

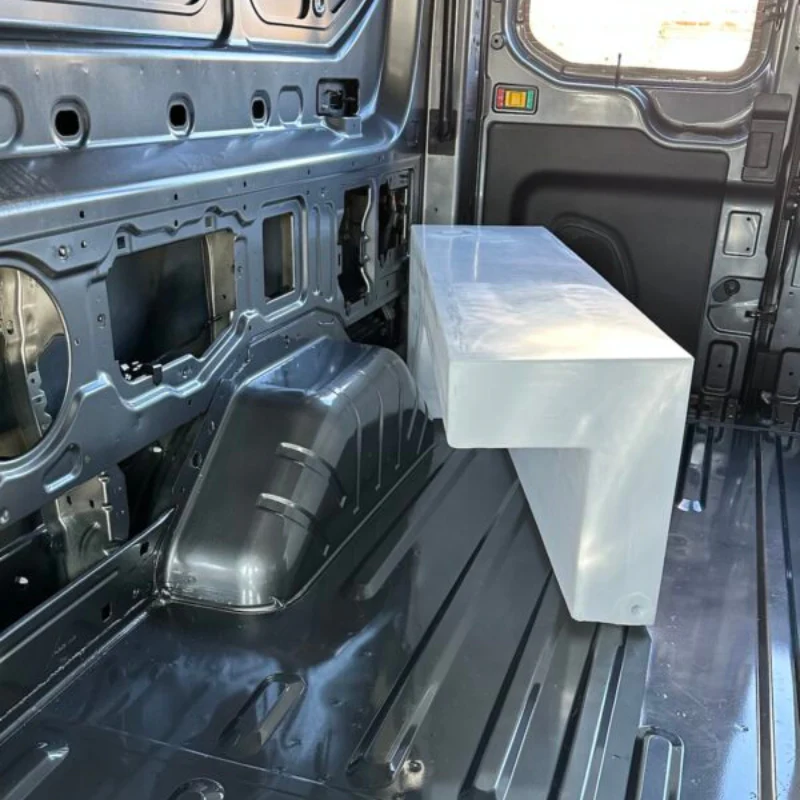

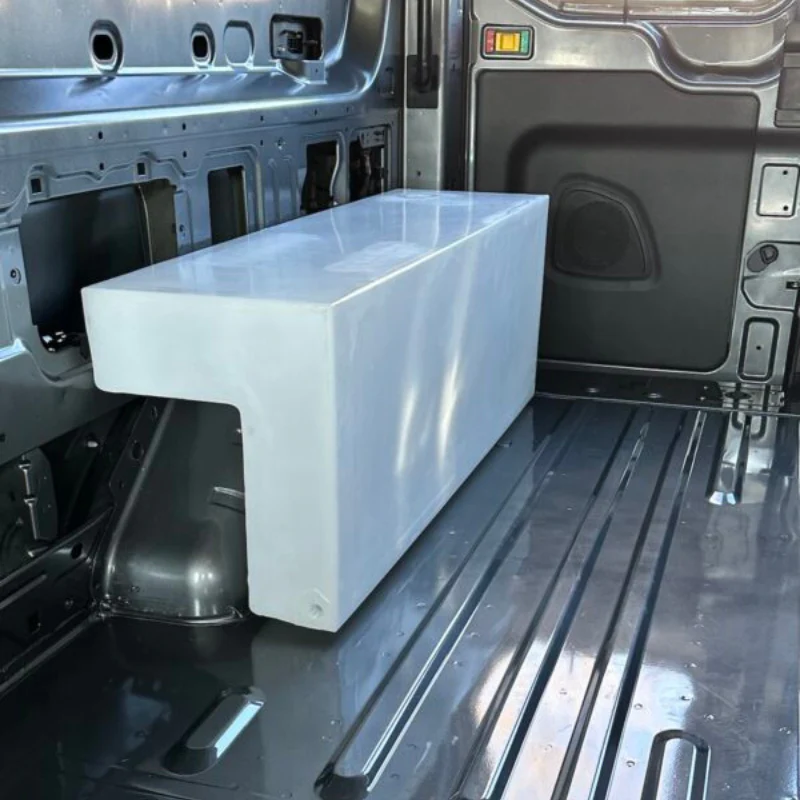

- Tank sits majority rear of wheel well on when placed on passenger side and majority front of the wheel well when placed on the driver side.
- Overall dimension: 44.5" x 16" x 12.5" (see diagram).
- Tank has (2) 1.5" NPT ports (need to be drilled out) and (2) 1/2" NPT ports on large rectangular end and (1) 1/2" NPT port on open end. (see diagram)
- Tank has (1) 1.5" NPT port (need to be drilled out) on top for fill or level sensor.
- Tank is designed to NOT be pressurised. (I.e. Needs to be vented).
- Tanks are made from BPA Free Food Grade Polyethylene.
- Made in the USA.
The 24 Gallon Wheel Well Water Tank is designed to use the wasted space around the wheel well. It is designed to fit the Ford Transit Vans but may also fit other makes and models.
Weight: 22 lbs
Dimensions: 45 × 13 × 16 in
Tank Compatibility:
- 24 Gallon Wheel Well Water Tank (TR-R-24)
- Designed for the For Transit Van
- Can be placed either driver or passenger side.
- Tank sits majority rear of wheel well on when placed on passenger side and majority front of the wheel well when placed on the driver side.
- Overall dimension: 44.5" x 16" x 12.5" (see diagram).
- Tank has (2) 1.5" NPT ports (need to be drilled out) and (2) 1/2" NPT ports on large rectangular end and (1) 1/2" NPT port on open end. (see diagram)
- Tank has (1) 1.5" NPT port (need to be drilled out) on top for fill or level sensor.
- Tank is designed to NOT be pressurised. (I.e. Needs to be vented).
- Tanks are made from BPA Free Food Grade Polyethylene.
- Made in the USA.
The 24 Gallon Wheel Well Water Tank is designed to use the wasted space around the wheel well. It is designed to fit the Ford Transit Vans but may also fit other makes and models.
Weight: 22 lbs
Dimensions: 45 × 13 × 16 in
Tank Compatibility:
$299.00
NW Conversions 24 Gallon Ford Transit Wheel Well Water Tank - Right (TR-R-24)—
$299.00
Description
- 24 Gallon Wheel Well Water Tank (TR-R-24)
- Designed for the For Transit Van
- Can be placed either driver or passenger side.
- Tank sits majority rear of wheel well on when placed on passenger side and majority front of the wheel well when placed on the driver side.
- Overall dimension: 44.5" x 16" x 12.5" (see diagram).
- Tank has (2) 1.5" NPT ports (need to be drilled out) and (2) 1/2" NPT ports on large rectangular end and (1) 1/2" NPT port on open end. (see diagram)
- Tank has (1) 1.5" NPT port (need to be drilled out) on top for fill or level sensor.
- Tank is designed to NOT be pressurised. (I.e. Needs to be vented).
- Tanks are made from BPA Free Food Grade Polyethylene.
- Made in the USA.
The 24 Gallon Wheel Well Water Tank is designed to use the wasted space around the wheel well. It is designed to fit the Ford Transit Vans but may also fit other makes and models.
Weight: 22 lbs
Dimensions: 45 × 13 × 16 in
Tank Compatibility:
